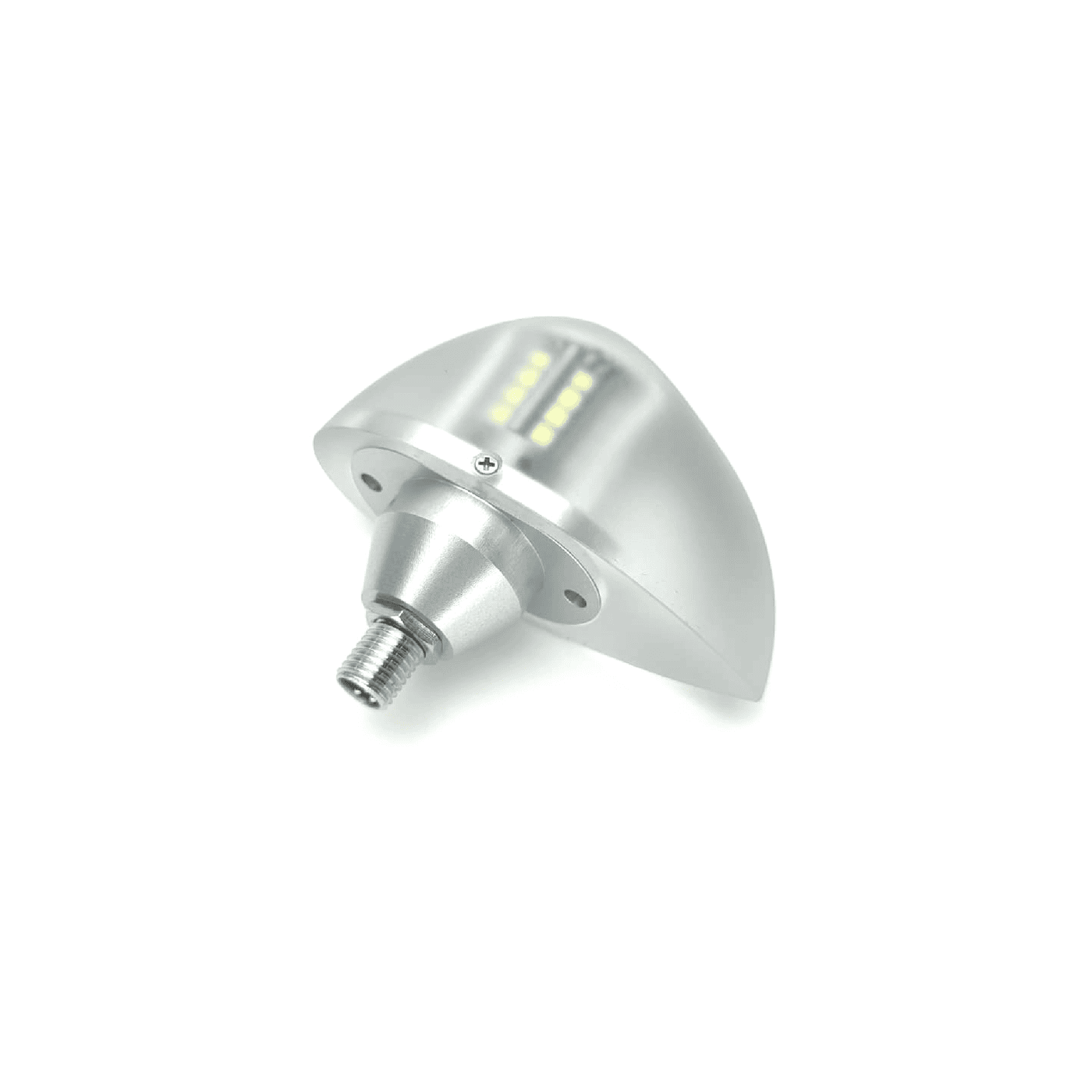

STROBE LIGHT FOR EXPERIMENTAL AIRCRAFT - VERTICAL WHT LED
Optimized for installation on vertical stabilizers and wingtips, it features a streamlined polycarbonate lens and a durable aluminum body. Each strobe unit weighs less than 80 grams.
At the heart of each unit is a bright LED bulb, delivering approximately 2,600 lumens in a two-short-flash, one-long-pause sequence. This is achieved through an integrated controller, eliminating the need for an external strobe driver.
*Choose from :
- A single unit, OR synchronized two-unit system for optimal visibility.
- White or Red bulbs to suit your preferences.
- Options :
Download Product Specification and Installation Instructions Document HERE.
FAQ
Q: Where can I find specifications and installation instructions for this product?
A: You can find both the specifications and installation instructions here (PDF download available).
Q: How many options do you offer for this product?
A: We offer the following options for this product:
Single Strobe Light - with WHITE LED bulb
Single Strobe Light - with RED LED bulb
Dual Set - with 2 WHITE LED bulbs
Dual Set - with 2 RED LED bulbs
Dual Set - with 1 RED and 1 WHITE LED bulb
All orders are shipped with the standard side-mounted, straight power connector. However, if required, we can provide:
90-degree M8 connector (US$10 each)
Q: Can this be used as a position light?
A: No, this is designed solely as a strobe light with an integrated flashing control that cannot be removed.
Q: Are the connectors in the photos included?
A: Yes, they are. You can see our product specifications here, which show what is included in a single or dual unit package.
Q: How much does this product weigh?
A: A single unit weighs ~80g (net) with the connector attached. This weight excludes the wires you will be connecting to the unit. With packaging, the total shipping weight is 240g.
Q: How bright is this?
A: The heart of each unit is a bright LED bulb delivering approximately 2,600 lumens.
Q: Do I need an external strobe driver?
A: No, H9W Strobe Lights are integrated with flash controllers, eliminating the need for any external strobe driver.
Q: How does this light flash?
A: Our strobe light flashes in a two-short-flash, one-long-pause sequence (see the video above).
Q: Is this TSO'd and certified?
A: No, this product is non-TSO'd and uncertified. It is NOT approved for use on certified aircraft.
Q: Where can I find the measurements for the product as well as the drill guide for installing this product?
A: You can find all that info here (PDF download available).
Q: How much current does this product draw?
A: 0.5A per unit maximum.
Q: What’s the minimum and maximum input voltage?
A: 11.5–14.2V
Q: Is this product compatible with 28V electrical systems?
A: No, currently our product is only compatible with 12V systems.
Q: Is this optimized for installation anywhere on an aircraft?
A: This version of H9W Strobe Light is optimized for installation on vertical stabilizers and wingtips.
